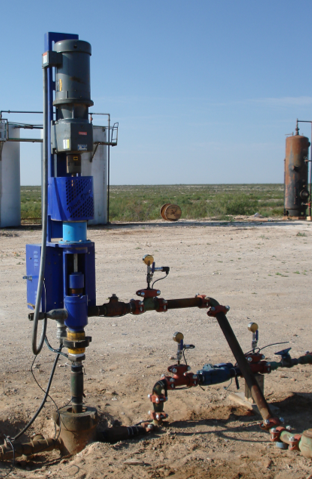

5 HP Inline Drive Head

Patented Drive Head Features

• 1. Interchangeable Gear Drive (Turns Polish Rod, no belts no adjustment no slippage)


• 2. Serviceable Load Bearing Section (You can replace bearing in the field)


• 3. Pumping Tee is Built-in (Integral to the drive head and not charged separately for it)


• 4. Stuffing Box is Built-in (Integral to the drive)


• 5. Body of Drive secures to tubing, flowline and casing to lock unit in place (No rotation)

Drive Head also Includes

• Polish Rod (1 1/8”)


• Polish Rod Clamp


• Packing for Stuffing Box (Uses standard rope packing of all types and Skinner)


• Back Spin Brake


• 3” Quick Connect and Change Over to 2 3/8” or 2 7/8” tubing. (Remove from well in minutes)
